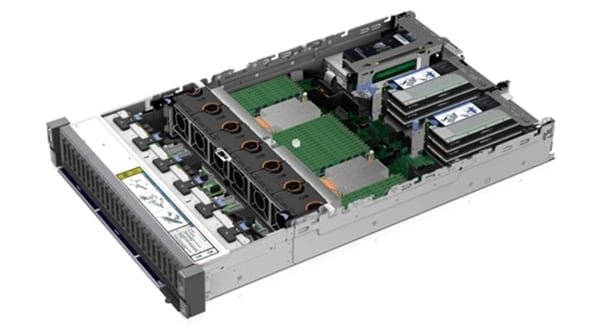

Lenovo ThinkSystem SR650 V2 Rack Server

2U rack server

Up to 2x 3rd generation Intel® Xeon® Scalable processors, up to 40 cores, up to 270W TDP

Up to 20x 3.5-inch or 40x 2.5-inch drives; Up to 32x NVMe drives supported with NVMe switch adapters; 2x M.2 boot drives (RAID 1); 2x 7mm boot drives in rear (RAID 1)

32x DDR4 memory slots; Maximum 4TB using 32x 128GB 3DS RDIMMs; Supports up to 16x Intel^® Optane™ Persistent Memory 200 Series modules (PMem)

Up to 8x PCIe 4.0 slots, 1x OCP 3.0 slot, 1x cabled HBA/RAID adapter that doesn’t occupy a standard PCIe slot

Up to 8x single-width GPUs or 3x double-width GPUs

LOM adapter installed in the OCP 3.0 slot; PCIe adapters

Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port

Rear: 3x USB 3.1 G1, 1x VGA, 1x RJ-45 (management), 1x Serial port (optional)

SW RAID standard; optional HW RAID with/without cache or 8/16-port SAS HBAs

Dual redundant power supplies (up to 1800W Platinum)

Lenovo XClarity Controller

Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for details.

1-year and 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades

Lenovopress.com/ds0126
